Deeper CHIRP+3 Power Bundle

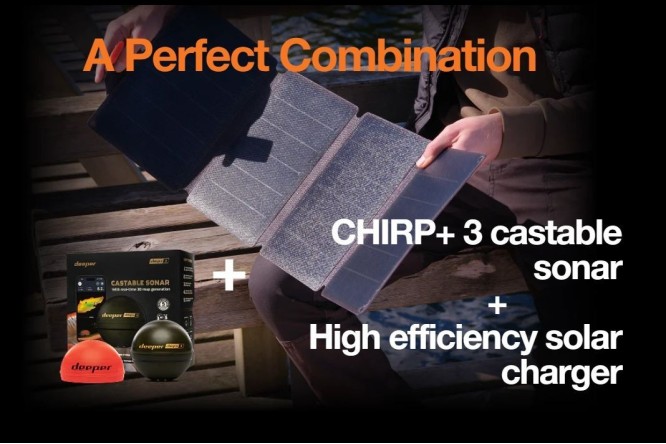

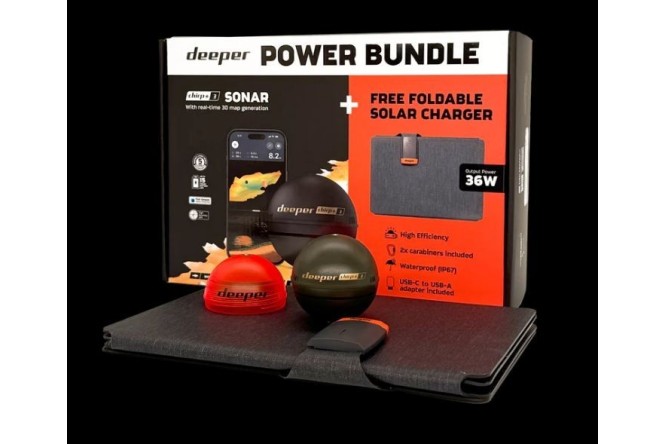

This bundle includes the castable Deeper CHIRP+ 3 sonar and the foldable solar charger.

Take your fishing to the next level with the unmatched accuracy of CHIRP+ 3 and custom 3D depth mapping.

Pair it with Fish Deeper and your foldable solar charger for a complete experience, allowing you to plan, analyze, and record your fishing adventures wherever you go.

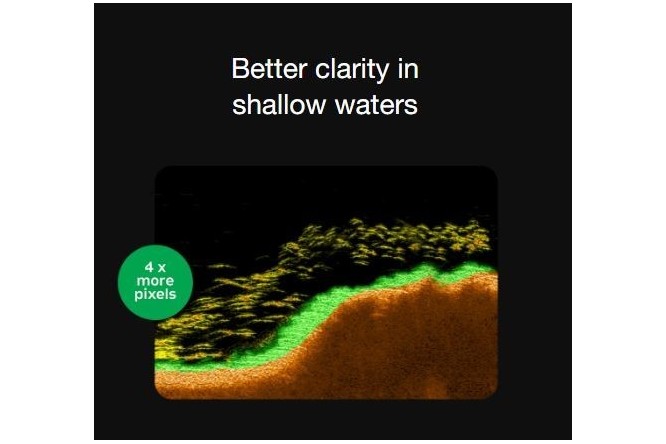

Deeper Chirp+ 3 sonar offers incredible detail of your bottom thanks to bathymetric mapping, which generates real-time 3D maps and provides an accurate image of bottom structure, depth, and slope. Ultra-precise target separation of 1 cm allows you to distinguish even the smallest fish, pinpointing targets to maximize catch efficiency.

Equipped with three beam frequencies: a wide beam for quick area scanning, a medium beam for balanced detail, and a narrow beam for pinpoint accuracy. Simply pair it with the Fish Deeper app on your smartphone and you're ready to go.

Characteristics

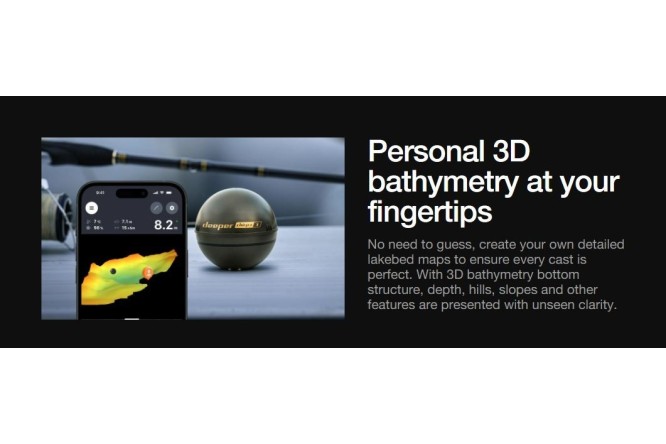

Personal 3D bathymetry
More detailed sonar readings

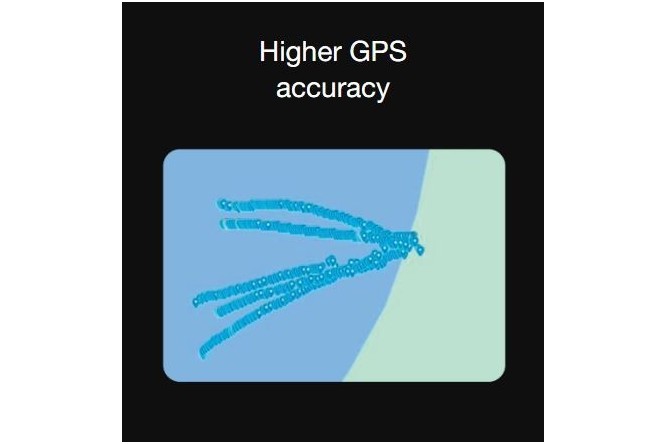

High precision GPS
5-year warranty

Specifications

Material – ABS case
Sonar type – 3 frequencies
Frequency (beam cone) Narrow 675 kHz (7° cone angle) – Medium 240 kHz (20° cone angle) – Wide 100 kHz (47° cone angle)
Target separation: 1cm / 0.4inch Narrow beam: 2.4cm / 1inch Medium beam: 2.4cm / 1inch Wide beam
Minimum – maximum depth – 15 cm – 100 m / 6 inches – 330 feet
Scanning speed: up to 15 / second
Temperature Sensor – Water Surface Temperature Sensor in Celsius/Fahrenheit
Operating temperature – 20°C to 40°C
GNSS (Supported Global Positioning Systems) – GPS, GLONASS, Galileo, BeiDou, QZSS
Operating time: up to 15 hours
Charging technology – Fast charging – 80% in 45 min – 100% in 75 min.
Internal battery – Li-Ion, 3.8 V rechargeable, 1300 mAh
Socket adapter (not included) – Input 110V/220V. Output Micro USB, 5V 2A
Connectivity – Wi-Fi
Connectivity range: Stable connection up to 120 m / 394 ft

Scanning depth: 100 m / 330 ft
Color – Black

Total weight of the bundle: 865 gr
